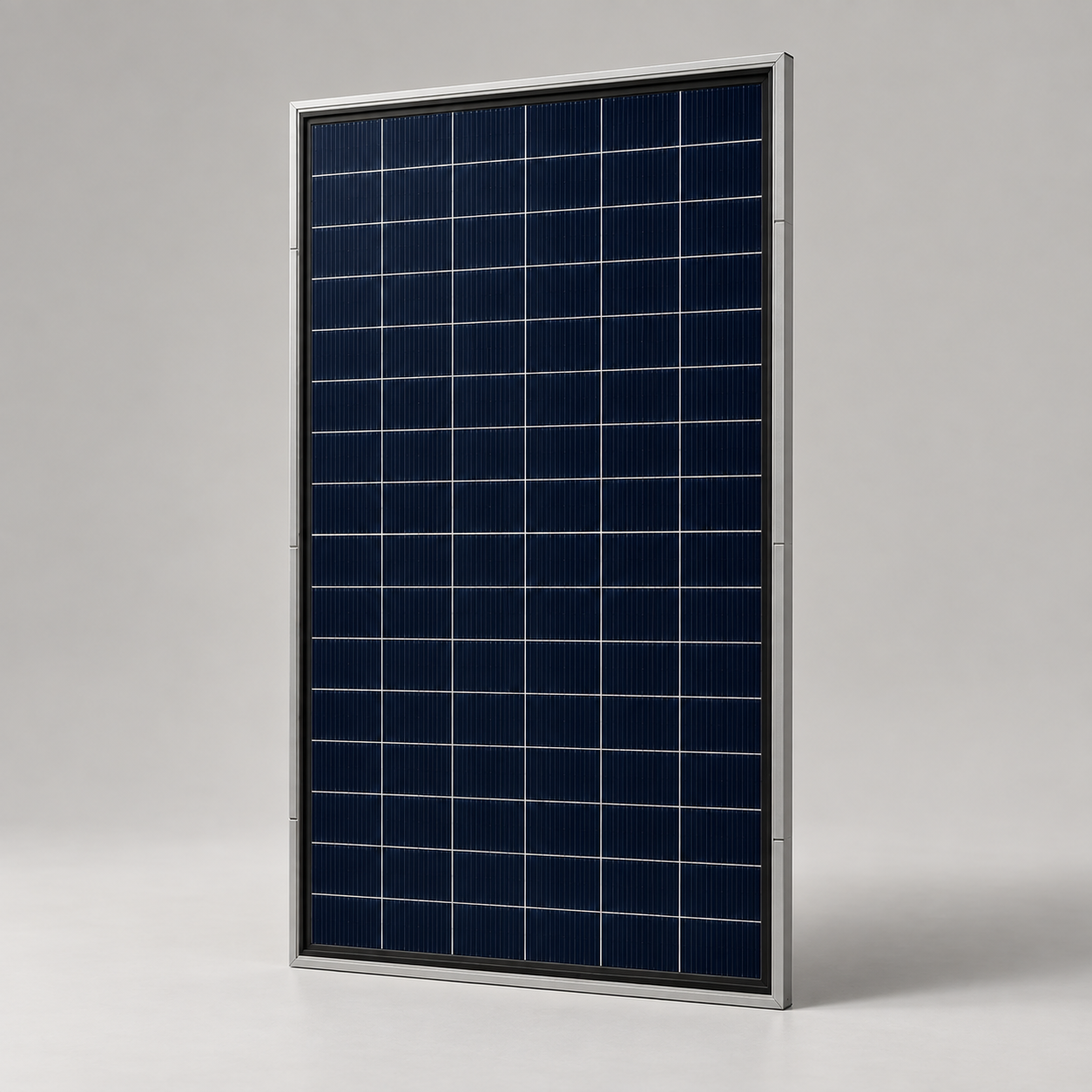

T480-T500 High-Efficiency Shingled Solar Module
$1,999.00
Guaranteed Safe Checkout
Features & Compatibility
High-output shingled modules for distributed and integrated PV
The T480-T500 series delivers 480-500 W output with up to 25.02% module efficiency. It is designed for distributed generation, transportation, BIPV and customized applications.
Key features
- Five rated power options from 480 W to 500 W
- Maximum module efficiency of 25.02%
- Single-glass or double-glass configuration
- 96-cell, 6 × 16 layout
- MC4 connection with a 240 mm / 4 mm² output lead
Electrical performance at STC
| Parameter | 480 W | 485 W | 490 W | 495 W | 500 W |
|---|---|---|---|---|---|
| Maximum power (Pmax) | 480 W | 485 W | 490 W | 495 W | 500 W |
| Current at maximum power (Imp) | 12.85 A | 12.96 A | 13.05 A | 13.16 A | 13.30 A |
| Voltage at maximum power (Vmp) | 37.41 V | 37.48 V | 37.55 V | 37.62 V | 37.69 V |
| Short-circuit current (Isc) | 13.12 A | 13.23 A | 13.34 A | 13.45 A | 13.55 A |
| Open-circuit voltage (Voc) | 45.62 V | 45.70 V | 45.78 V | 45.86 V | 45.94 V |
STC: irradiance 1000 W/m², cell temperature 25 °C, AM1.5.
Mechanical and operating specifications
- Module size: 1762 × 1134 × 30 mm
- Maximum design load: front 3600 Pa / rear 1600 Pa
- Application class: Class II
- Fire classification: Class C
- NMOT: 45 ± 2 °C
Download the T480-T500 Product Datasheet 2026 (PDF)
Specifications are based on the current sample and structural design and may be updated as the product develops.
